YDK-Z Series Heavy Duty Frame Hydraulic Press Water Bulging Machine

Contact Now

YDK-Z Series Heavy Duty Frame Hydraulic Press

YDK series frame-type hydraulic press (± press type/down press type) is suitable for imprinting, extrusion molding, shallow drawing, shaping, overmolding and trimming of metal or non-metal parts; typical products that can be pressed are watch cases , watch straps, glasses frames and parts, photo frames, tableware, signs, locks, auto parts and hardware parts, etc.

Features: This machine has the characteristics of good structural rigidity, fast pressing and forming, good guiding performance, fast speed, etc. It can also be used in automatic production lines.

		单位	YDK-Z1000	YDK-Z1500	YDK-Z2000
Main cylinder nominal force		KN	10000	15000	20000
Rated working pressure of hydraulic system		Mpa	25	25/40	25/40
Return Nominal Force		KN	60	80	100
Maximum travel of movable beam		KN	200	200	250
Distance from movable beam to work surface	Maximum	mm	500	500	600
Distance from movable beam to work surface	Minimum	mm	300	200	350
Lifting speed of movable beam	No-load downlink	mm/s	120	120	100
	pressurized	mm/s	4	4	4
	Return trip	mm/s	160	100	90
Motor Power		Kw	22	30+3	37+3
Effective area of worktable left and right columns*front and rear		mm	880X880	880X880	1180X1180
Main body outline size reference (left and rightfront and rearheight)		mm	1500X2250X2900	1600X2250X3200	2200X2350X3400

Product Tags:

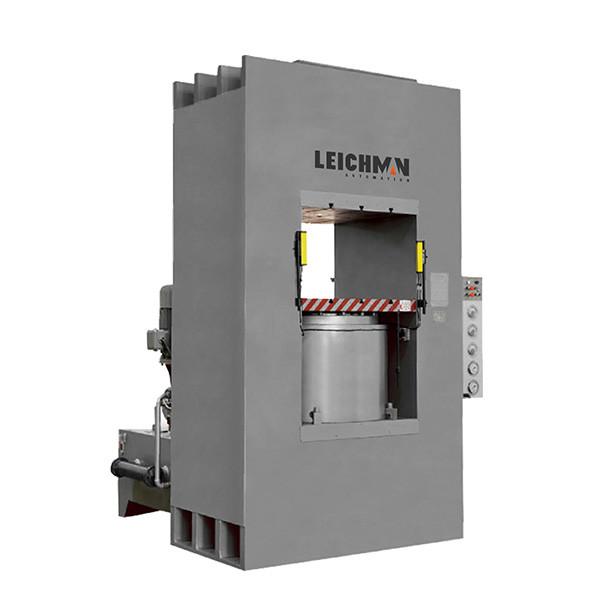

YDK-Z Series Heavy Duty Frame Hydraulic Press Water Bulging Machine Images
